Description

The development of infrastructure for electric vehicle charging is one of our key areas of activity. At Ennovation Technology, we offer charging stations ranging from 30kW to 480kW, and each station can be additionally equipped with a 22kW AC module. All stations can be equipped with a payment terminal, feature a user-friendly interface, and are ready for integration with all management system providers.

All stations are characterized by high efficiency, power, reliability, as well as resistance to harmful environmental effects.

The stations meet the parameters according to the CE declaration and Polish standards, and have the Technical Inspection Authority certification

Offer

EN 480 kW

The EN 360kW-480kW charging station is used in ultra-fast charging points such as multi-charger stations or ultra-fast charging hubs. Thanks to cooling systems, each dispenser can deliver a maximum power of 480kW at 1000V. The EN 360kW-480kW charging station consists of a power cabinet and up to 3 dispensers for charging 6 vehicles simultaneously.

Possible configurations: 240kW, 360kW, 480kW.

Basic parameters
DC output power
480 kW
Number of simultaneously charged vehicles
6 vehicles
Configuration
Up to 480 kW at voltage up to 1000 V
Efficiency of the device under full load
≥ 94%
IP Rating
IP 55, IP 54 (for the power strip)
Resistance to aggressive environments
Yes
Functionality:
CCS2 support
Yes
Smart charging
Yes
CCS2 connector liquid cooling system
Optional
OCPP 1.6J support
Yes
Interface
User-friendly
Display
7" LCD, touchscreen
LAN support
Yes
LTE support
Yes
RFID support
Yes
Cashless payment support
Yes
Energy measurement system
Internal high accuracy energy measurement system
Features ensuring high security
EPO, SPD, RCP, insulation status monitor
Certification:
Compliance
Complies with CE, EN 61851-1-2001; EN 61851 21-2001; EN 61851-22-2001; EN61000-6-3 i EN61000-6-1 class A

Possible power distribution

All energy dedicated to one EV in any distributor up to 480 kW.

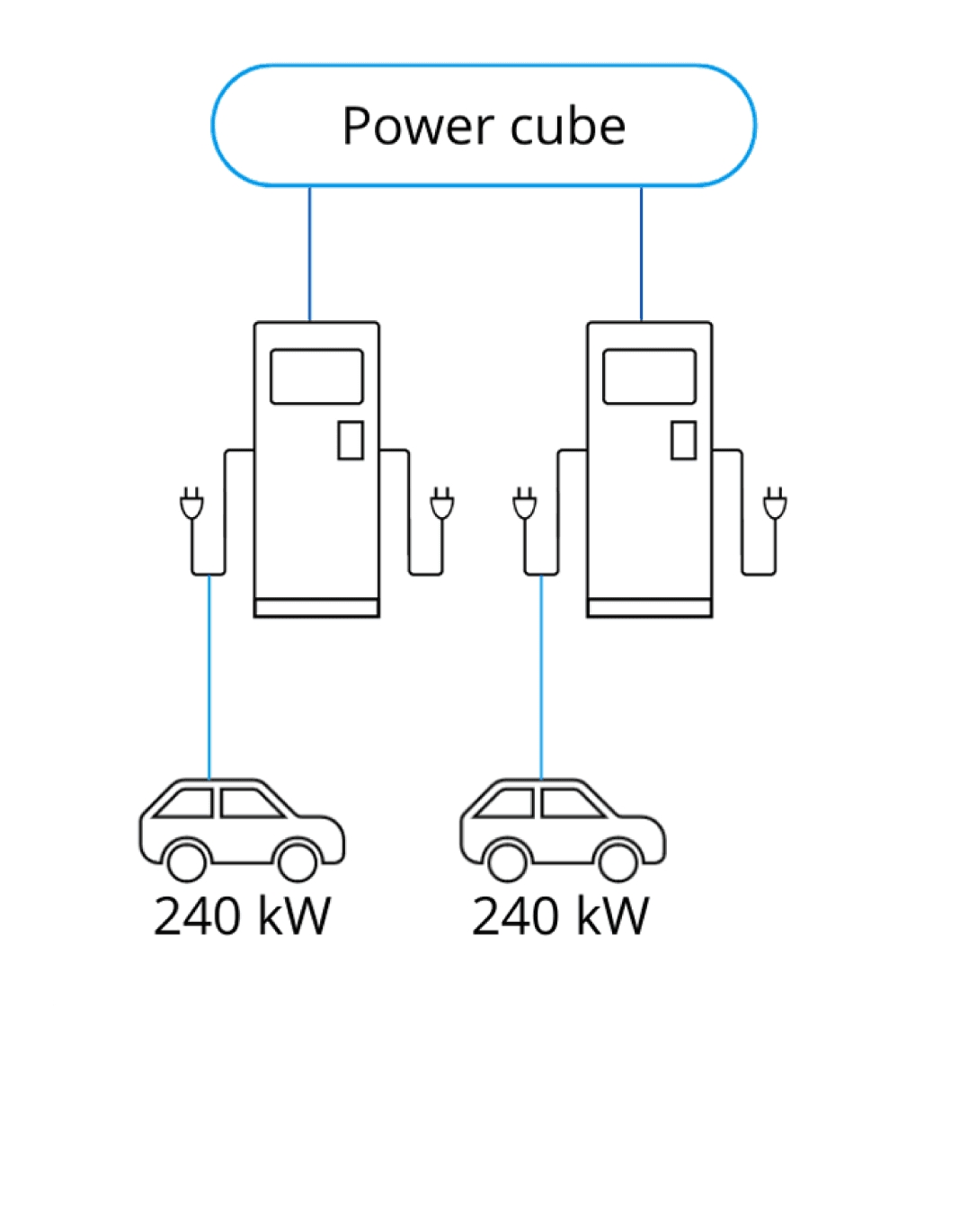

The maximum power of 480 kW divided evenly over the vehicles, each receiving 240 kW.

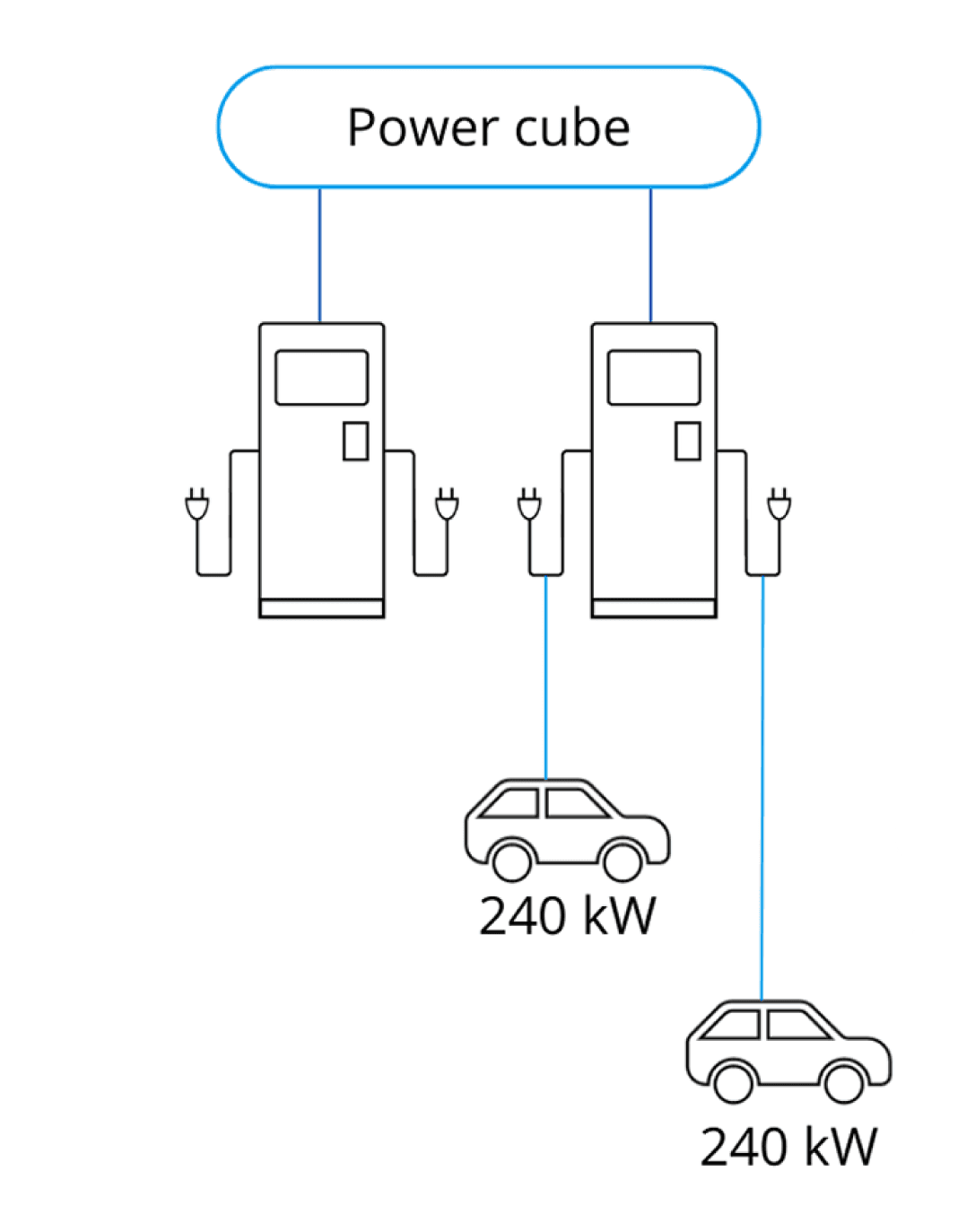

Energy divided evenly among distributors, each with a capacity of 240 kW.

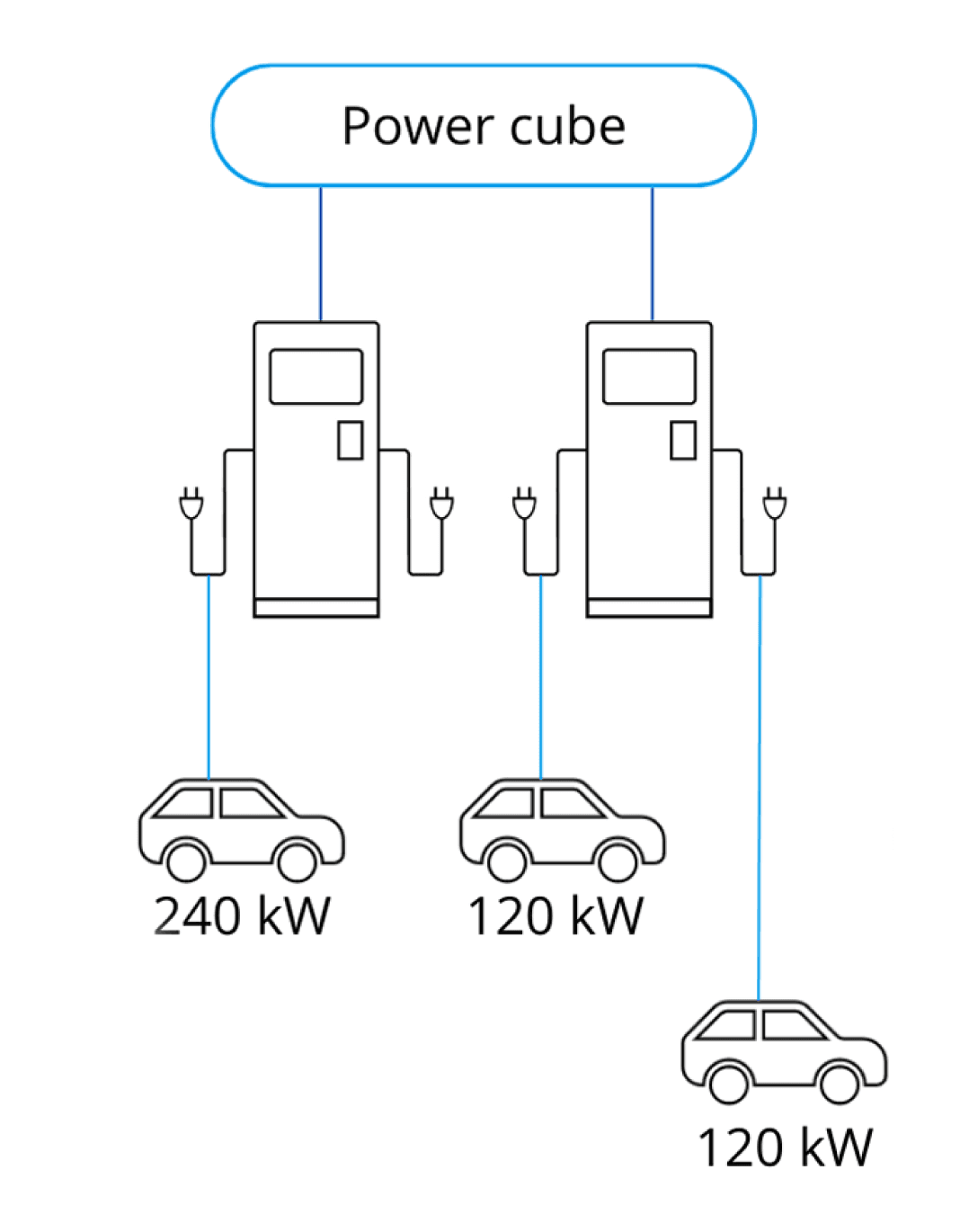

The 240 kW power is supplied to one distributor, and the other 240 kW is shared by two vehicles of 120 kW each.

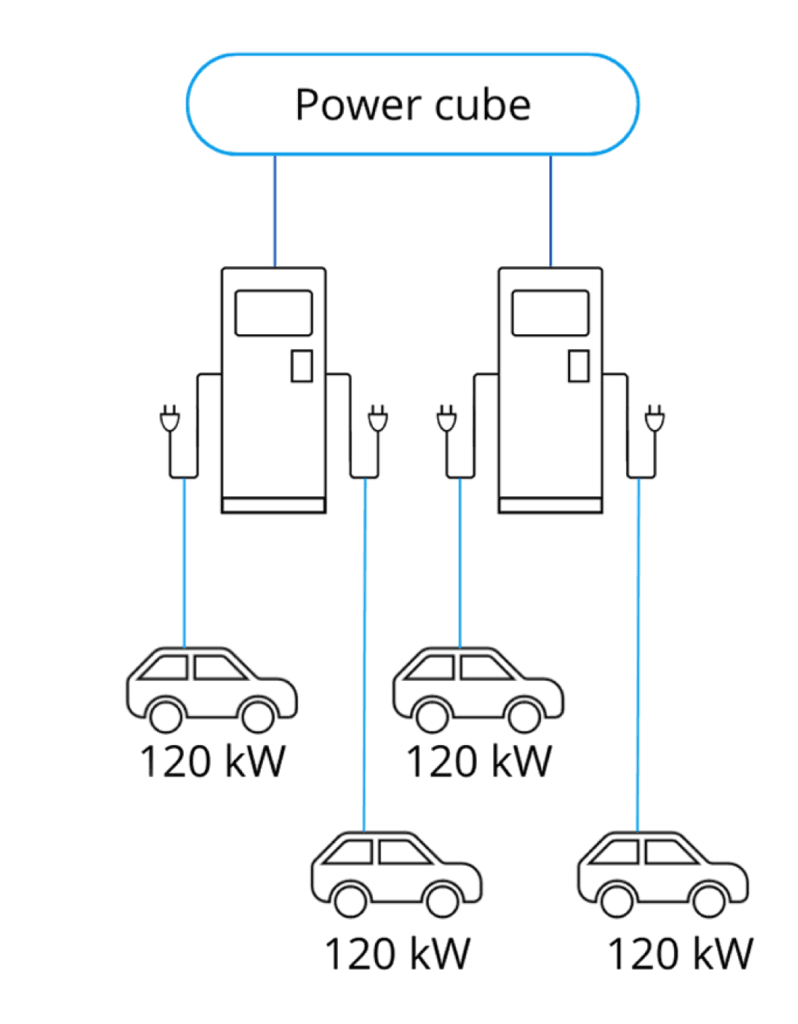

Up to four electric vehicles charged simultaneously – each getting 120 kW.

EN 350 kW with energy storage

The EN 350kW charging station with energy storage is designed for ultra-fast charging points, also known as charging hubs. It is dedicated to heavy-duty transport, delivery vans, and trucks.

The presence of an energy storage system reduces the demand for connection power and allows for savings in costs associated with expanding the connection and its operational expenses. Additionally, the energy storage system enables reducing electricity costs and, among other things, charging electric vehicles when energy is cheapest.

EN 180 kW

The EN 180kW charging station is designed for fast charging of electric vehicles in commercial locations such as bus depots, workplaces, gas stations, and parking lots. It offers a maximum charging power of 180kW.

Possible configurations include 90kW, 120kW, or 150kW.

Basic parameters
DC output power
180 kW
AC output power
22 kW
Maximum current
300 A
Output DC voltage range
From 150 V to 1000 V
Efficiency of the device under full load
≥ 95%
IP Rating
IP 55/ IK 10
Functionalities:
CCS2 support
Yes
CHAdeMO support
Yes
OCPP 1.6J support with possible SW update to 2.0 version
Yes
AC Type 2
Yes
Smart charging and battery management
Ability to charge three vehicles simultaneously
Features to ensure high safety in the use of outlets
EPO, SPD, RCP, insulation status monitor, Internal AC and DC meter
Interface
User-friendly
Display
7" LCD touchscreen, tempered glass
LAN support
Yes
LTE support
Yes
RFID support
Yes
Casless payment support
Yes
Charging modes
Automatic full, temporary, partial, relative to the amount of energy, up to set SoC
Power switch
Between two DC connectors
Certification:
Compliance:
Complies with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001; EN61000-6-3 i EN61000-6-1 Class A

EN 60 kW

The EN 60kW station is used for direct current charging of electric vehicles in commercial locations such as workshops, parking lots, and garages.

Possible installation locations include wall mounting or on a suitably prepared column.

Basic parameters
DC output power
60 kW
AC output power
22 kW
DC output voltage range
From 150 V to 1000 V
Efficiency of the device under full load
≥ 95%
IP Rating
IP 55/ IK 10
Functionalities:
CCS-2 support
Yes
CHAdeMO support
Yes
OCPP 1.6J support with possible SW update to 2.0 version
Yes
AC charger cable
Optional
Configurable outlets
Yes
Interface
User-friendly
Display
7" LCD, touchscreen
LAN support
Yes
LTE support
Yes
RFID support
Yes
Cashless payment support
Yes
Charging modes
Automatic full, temporary, partial, relative to the amount of energy, up to set SoC
Full compatibility with different system configurations
Yes
Installation
Wall mounting or suitably adapted column
Certification:
Compliance:
Complies with CE, UL2202, EN61000-6-4, EN61000-6-3, EN61000-6-2, EN61000-6-1 class B; EN 61851-1/EN 61851-23/EN 61851-24; EN 61851-1-2019; EN 61851-23-2014; EN 61851-24-2014

EN 30kW

The EN 30kW station is used for direct current charging of electric vehicles in commercial locations such as workshops, parking lots, and garages.

The EN 30kW station is simple and convenient to use. The station can be installed on a wall or on a suitably adapted column.

Basic parameters
DC output power
30 kW
AC output power
22 kW
DC output voltage range
From 150 V to 1000 V
Efficiency of the device under full load
≥ 95%
IP Rating
IP 54/ IK 10
Functionalities:
CCS-2 support,
Yes
CHAdeMO support
Yes
OCPP 1.6J support
Yes
AC charger cable
Optional
Confugurable outlets
Yes
Interface
User-friendly
Display
7" LCD, touchscreen
LAN support
Yes
LTE support
Yes
RFID support
Yes
Cashless payment support
Yes
Charging modes:
Automatic full, temporary, partial, relative to the amount of energy, to set SoC
Full compatibility with different system configurations
Yes
Certification:
Compliance:
Complies with CE 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001; EN61000-6-3; EN61000-6-1 Class A

22 kW CCS2 DC V2G Charger

The 22kW CCS2 V2G charger is a mobile bidirectional device primarily used for charging and discharging traction batteries of electric passenger cars, vans, trucks, and buses. V2G technology-supportive device allows the vehicle to be used as a home energy storage unit.

The charger is equipped with a CCS2 plug enabling charging/discharging of the vehicle with direct current. An additional three-phase 32A socket allows for connection to three-phase loads.
