Ennovation Technology is your partner specializing in the production of energy storage systems, which are a crucial component of the energy transition. Our mission is to participate in this process and contribute to a future that is environmentally friendly and powered by green energy. Replacing coal-fired power plants with renewable energy sources requires stabilizing the grid. One of the key elements for achieving this is energy storage systems (ESS), which offer the opportunity to optimize energy costs, connect to renewable energy sources, and minimize the risk of blackouts.
Energy storage systems can be built in various configurations and using different technologies, depending on the specific requirements of applications. Currently, the majority rely on lithium-ion battery cells. They are equipped with an Energy Management System (EMS), inverter, and battery system, which can be configured according to customer requirements in terms of power ranging from 50 kW to several MW and in terms of energy capacity from 100 kWh to several MWh. The modern EMS system utilized enables our devices to perform numerous functionalities. Depending on the expectations, battery modules are closed in rack cabinets or in maritime and specialized containers.
The technology developed in Ennovation Technology’s devices ensures, with proper use of the storage system, the stability of the batteries for up to 6,000 cycles and comes with a 5-year warranty.
Energy Storage Systems enable:
Functionalities
01
Phase voltage balancing
02
Voltage stabilization in PPE through active power regulation
03
Voltage stabilization through reactive power regulation
04
Energy cost optimization
05
Provision of guaranteed power supply services
06
Possibility of expanding renewable energy sources
07
On-grid, off-grid operation mode
Equipment
Energy Management System (EMS)
Energy Management System, or EMS, is a key tool in controlling and monitoring energy flows, and consequently, the savings or revenues from proper management of energy consumption in an enterprise.
The EMS keeps the user informed about its operating parameters and tasks performed. The energy storage can implement various control strategies such as:
- Obtaining revenue on price spree (e.g., dynamic tariffs)
- Obtaining revenue from the power market (e.g. DSR or generation)
- Increasing self-consumption
- Reducing distribution charges by reducing the value of contracted capacity
- Feed-in power supply
- System services (e.g., frequency regulation)
- Reactive power compensation
- Zero Export function
- Island operation (off-grid)

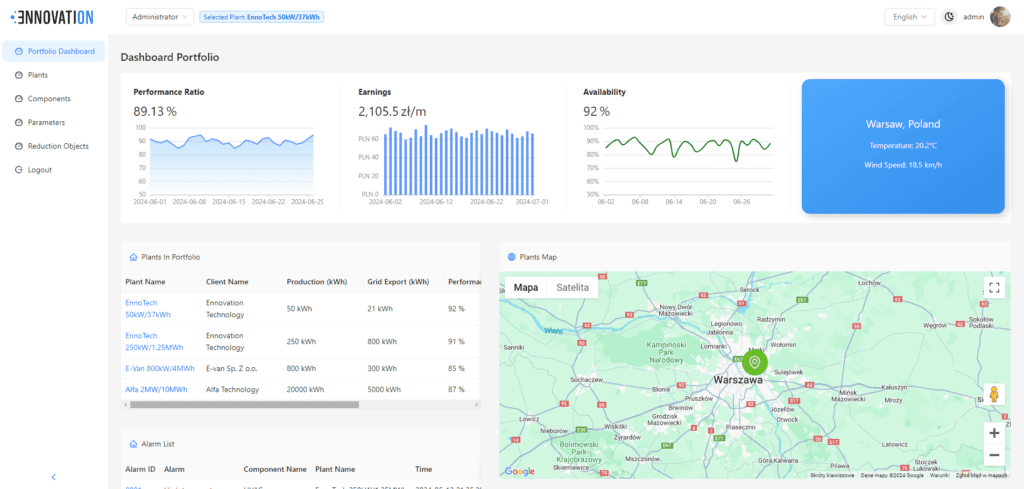

EMS system view
The topology of a company’s energy system can vary in terms of loads as well as energy demand profile. The key elements of the architecture are:
- Energy connection (the most relevant parameters are contracted power and connection power)
- Equipment, technological processes, i.e. the nature of the load, and in fact the profile of energy consumption and power demand
- RES (Renewable energy sources), most often in the form of photovoltaic installations
- Energy storage or other energy source

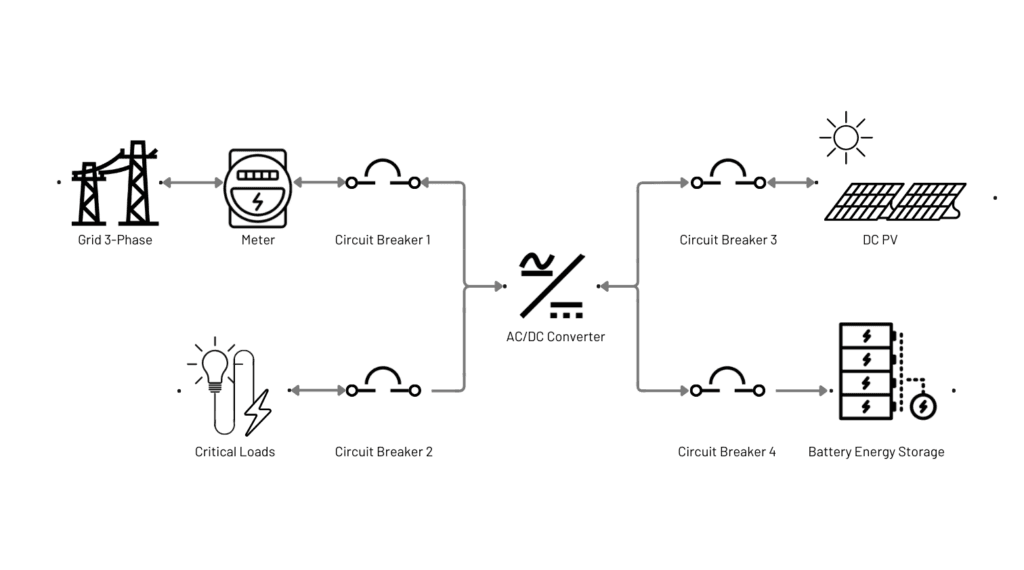

Visualization of EMS system topology
Examples of energy storage configurations:
1. Energy storage with a capacity of 1 MWh and a power of 250 kW
Battery system
Power module
Nominal voltage: 3x400 Vac
THDu: <1%
Frequency: 50 Hz / 60 Hz
Nominal AC current: 361A
With built-in transofrmer:Yes
EN61000-6-2:2005
EN61000-6-4:2007/A1:2011
VDE-AR-N4110:2018-11

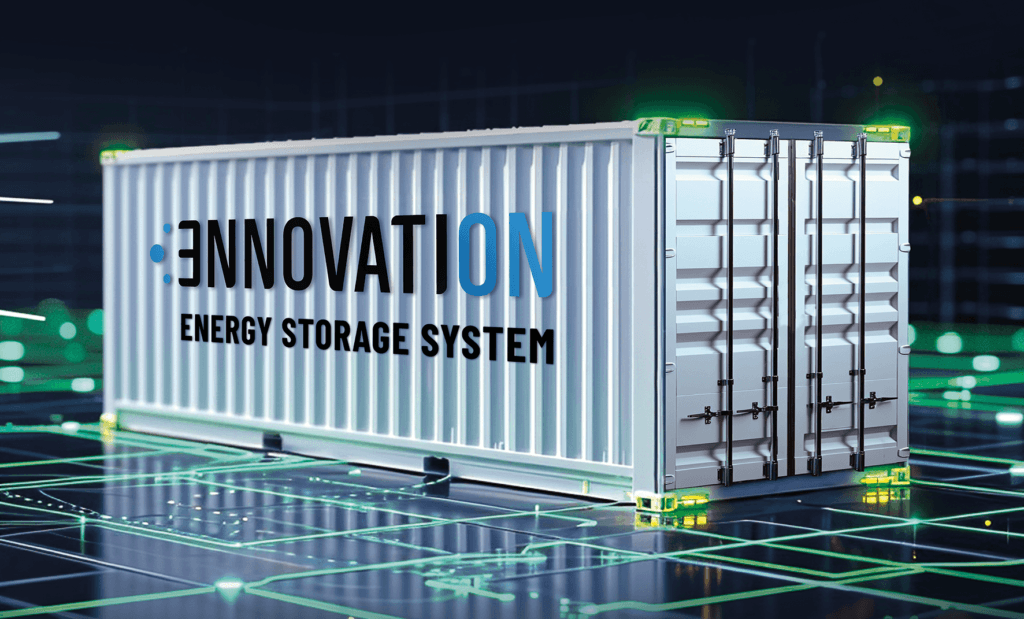

Dimensions of the 20-foot container

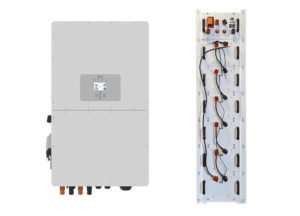

2. Energy storage with a capacity of 200 kWh and a power of 50 kW (PV connection possible)
Battery system
Hybrid inverter
Rated current of AC output: 75.8/72.5 A
Frequency and output voltage: 50/60Hz; 3L/N/PE 220/380, 230/400Vac
MPPT efficiency: 99.90%
EMC safety / regulations: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Cooling: Intelligent cooling
Noise level: < 45 dB
Mass: 60 kg
Dimensions: 560,5 mm (width) × 837 mm (height) × 319 mm (length)
Protection degree IP65
Installation
Technical specification
